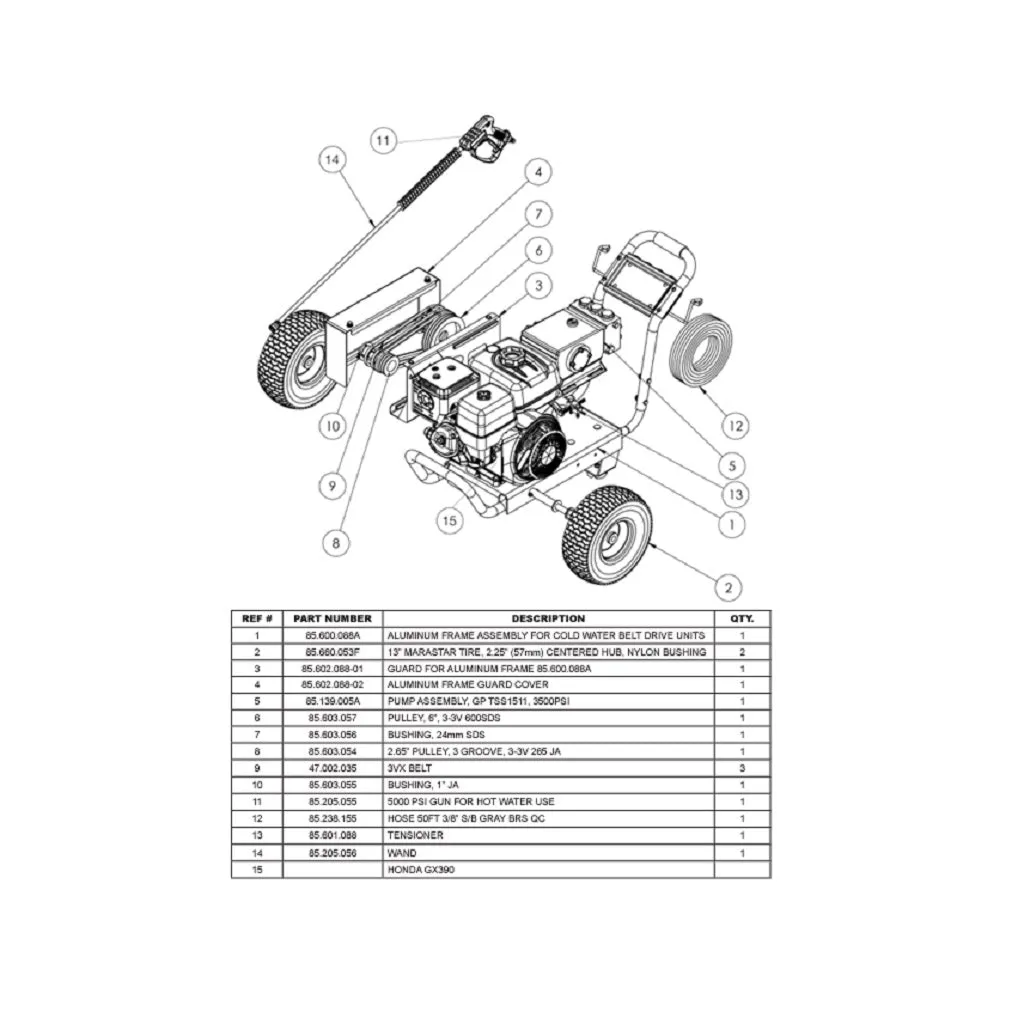

B4013HABG PDF Breakdown and Exploded Part View:

Click the link in BOLD for parts already listed in our store:

• 85.600.088A - Aluminum Frame Assembly (wheels and belt guard sold separately)
• 85.660.053F - 13" Wheel and Tire - Centered Hub
• 85.602.088 - Belt Guard for Aluminum Frame
• - TSS1511 General Pump Assembly
• - Pulley 6"
• - Bushing 24mm
• 85.603.054 - Pulley 2.65"
• 47.002.035 - 3VX Belt (need to order qty:3)
• 85.603.055 - Bushing 1"
• - Gun and Wand Assembly (replaced by 85.205.026)
• - 50ft Hose Assembly
• 85.601.088 - Pump Tensioner Assembly
• - Bare Lance (replaced by 85.202.026)

See for pump rebuild kits.
